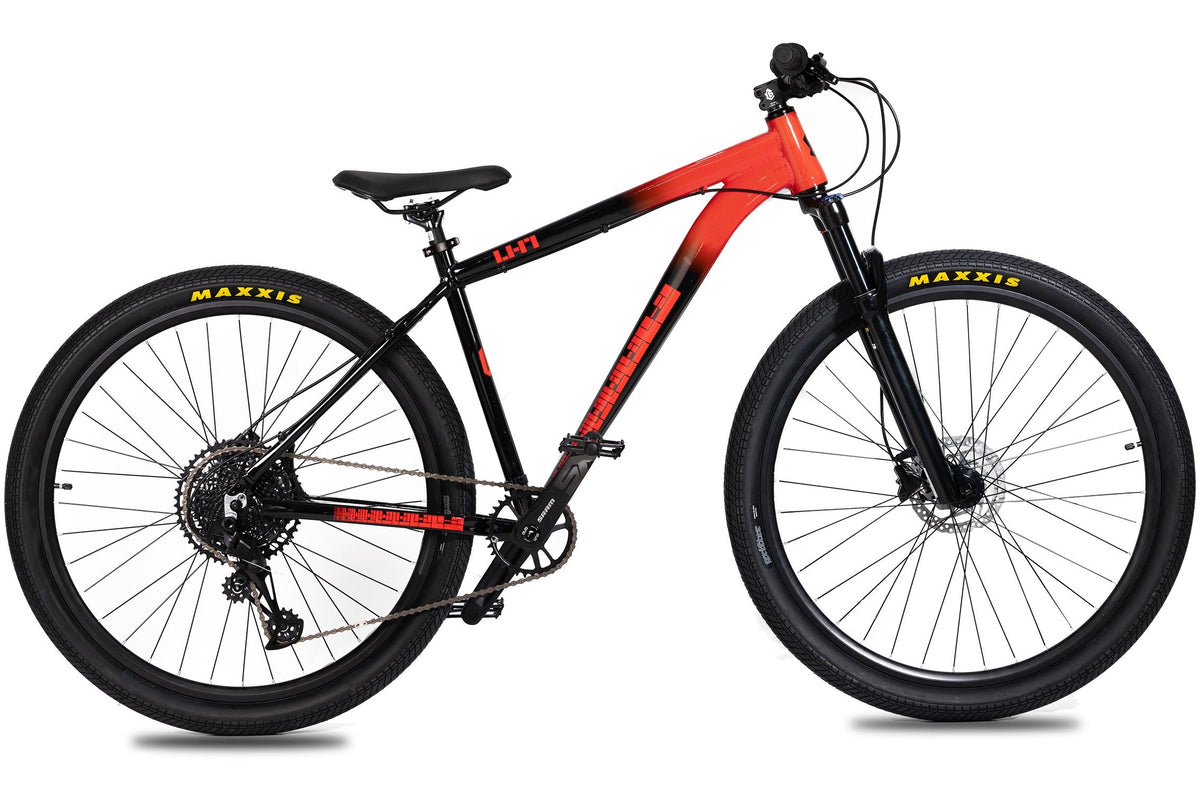

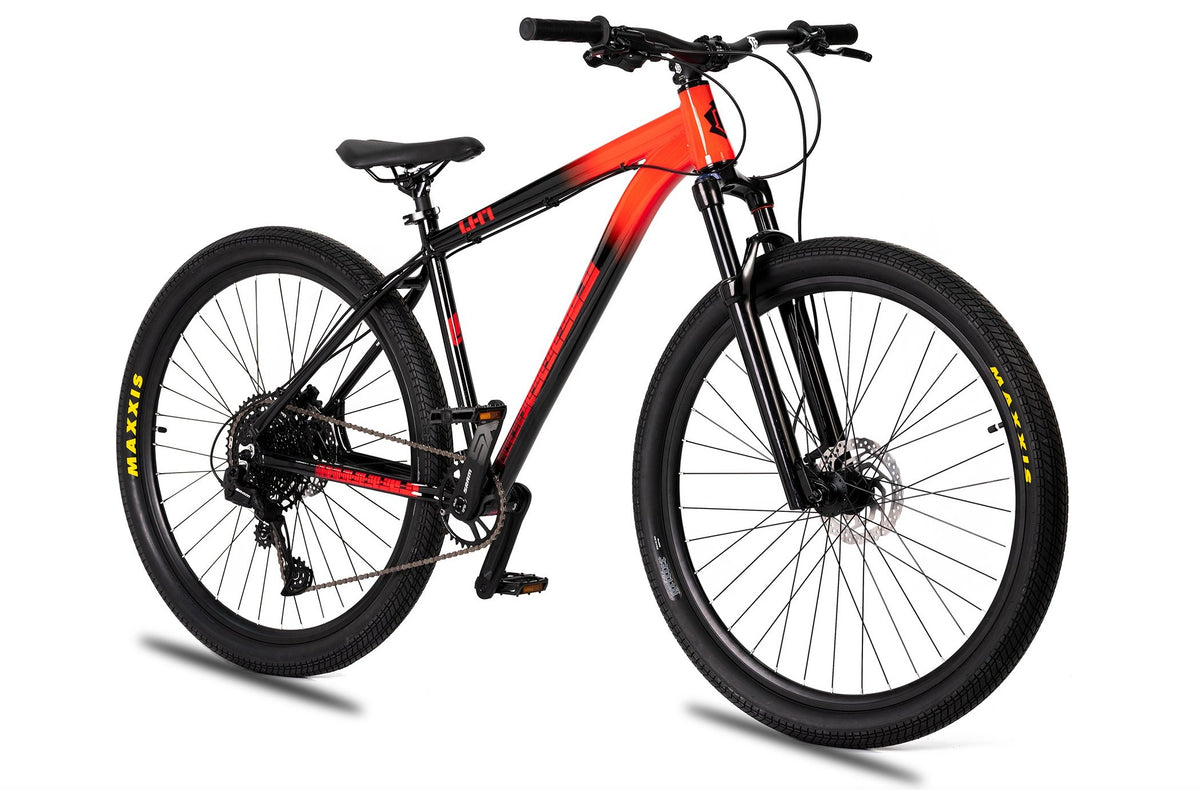

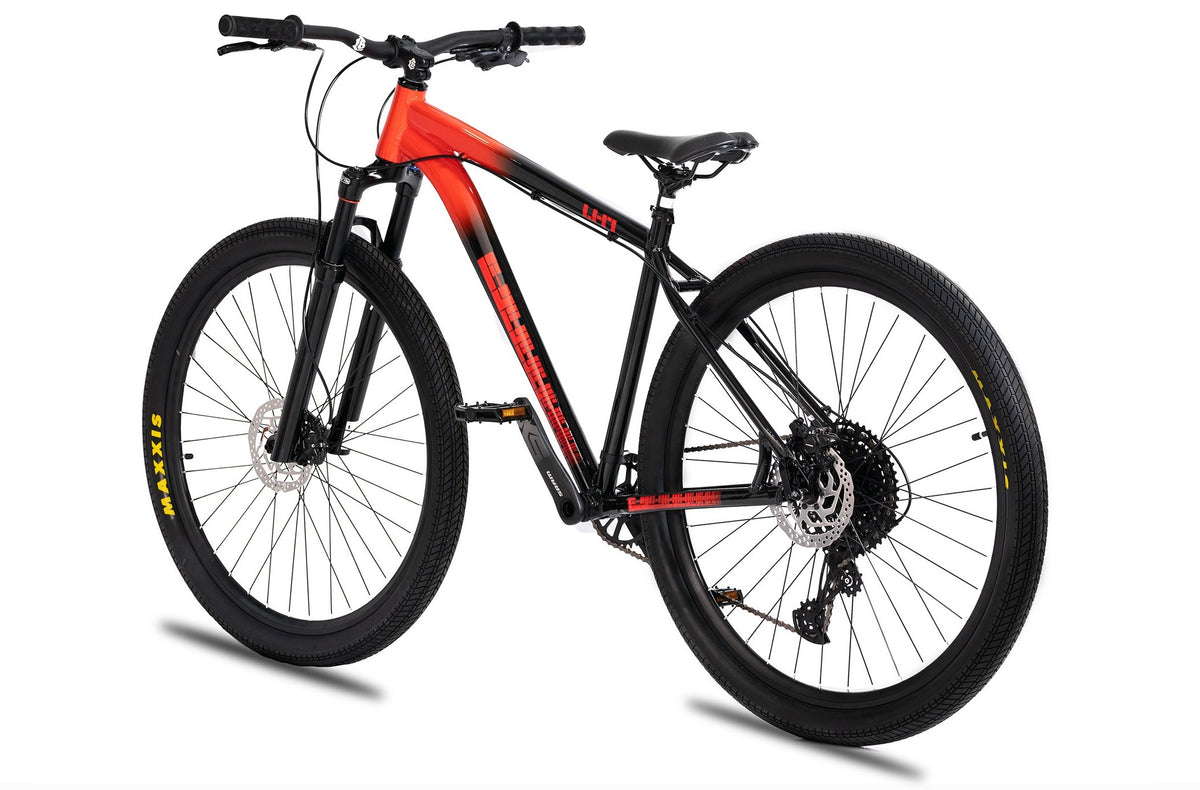

LH1 MTB

The LH1 is the latest MTB to join the Collective family. Specifically designed to mash work on the roads, this urbanised mountain bike is also great for trails.

Designed by Collective Bikes for one of our top Athletes Little Harry, he scrutinised every detail until completing his dream bike!

Specification:

Frame: 19" Alloy aluminium with a reinforced rear triangle

Fork:    120mm travel, Lockout, Air Fork

Stem: Collective Bikes custom short Alloy LA-490-8, 50mm

Headset:  Collective Custom Steelhead, 28.6X34X30mm, threadless, 2 x 5mm Black Alloy Spacers

Handlebar: Collective Bikes  Custom Alloy butted 740mm

Grips: Collective Speed tight

Seat Clamp: 31.8mm

Seat Post: 27.2mm

Brakes: Shimano Acera Hydraulic Disc Brakes Front and Rear

Shifter: SRAM SX Eagle Trigger

Derailleur: SRAM SX Eagle 12 Speed

Bottom bracket: SRAM DUB Bottom Bracket

Crank: SX Eagle Power Spline Crank Set 32T 12-speed Boost

Chain: SRAM SX Eagle

Cassette: SRAM SX Eagle PG-1210 Cassette 12spd

Rims: Collective 29" Double wall 32 hole

Hubs: Pro 36 hole nutted fully sealed hubs with new 4 pawl cassette

Spokes: Collective F UCP(263mmL) /R UCP(261/263mmL)

Tires: Maxxis Grifter 29er Tire Black | 2.5" Width
